New Rugged Book R50 - fbse

New Rugged Book R50 One Page Spec (V08M03Y16EN)

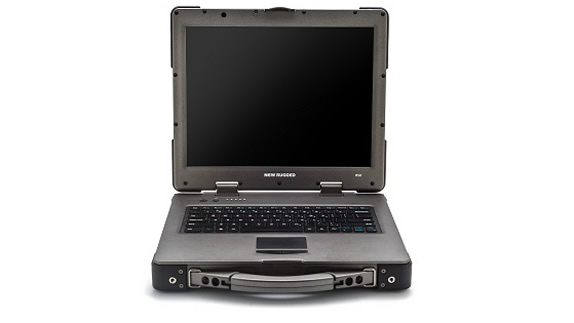

New Rugged Book R50

  • The Most Suitable Vehicle Notebook Computer
  • Full Alloy Case with Handle
  • 10-hour Battery Life

Powerful, Rugged and Wireless
CZC presents the New Rugged® R50, the reliable laptop offering theworld’s most rugged design. With drop-shock protection and a MIL-STD-810G&GJBcertification, it’s the undisputed leader in the fully rugged category. Combine new generations of delivering rugged performance.

SOFTWARE

  • Windows® XP Professional /Windows® 7 Professional
  • CZC New Rugged Utilities, Recovery Partition

DURABILITY

  • MIL-STD-810G/GJB (shock, vibration, rain, dust, sand, altitude, freeze/thaw, high/low temperature, temperature shock, humidity, explosive atmosphere)
  • IP65 certified sealed all-weather design
  • Full magnesium alloy case with handle
  • Reinforced locking port covers


CPU

  • Intel® Core™ i5-3610ME Processor
    • 2.7GHz with Turbo Boost up to 3.3GHz
    • 3MB cache
  • Intel® Core™ i7-3517UE Processor
    • 1.7GHz with Turbo Boost up to 2.8GHz
    • 4MB cache

STORAGE & MEMORY

  • 4GB DDR3L SDRAM Memory Down With One DDR3L SO-DIMM
  • 128GB solid state drives (SSD)

DISPLAY

  • 15" LED 1024X768, 400 nit(optional:1920x1440;1440x1080)
  • HD Graphics 4000
  • 15" LCD Protector Film

AUDIO

  • Intel® high-definition audio compliant
  • Integrated speaker
  • Keyboard volume and mute controls

Camera

  • Front 2M 720P

KEYBOARD & INPUT

  • 81-key with dedicated Windows® key
  • Capacitor-sensitive touchpad

EXPANSION SLOTS

  • ExpressCard x 1(ExpressCard 34)
  • SD card

INTERFACE

  • VGA D-sub 15-pin
  • Headphones Mini-jack stereo
  • Microphone Mini-jack stereo
  • Serial D-sub 9-pin(x1)(RS232)
  • Serial D-sub 9-pin (x 2)(RS232/RS422/RS485 MCU Configure)
  • USB 2.0 (x 2) Type A
  • USB 3.0 (x 1)
  • 10/100/1000 Ethernet RJ-45 (x 2)
  • GPS/BD External Antenna (x 1)

COMMUNICATION

  • Wireless 802.11a/b/g/n/ac
  • Bluetooth® v4.0 + EDR (Class 1)
  • GPS/BD(optional)

POWER SUPPLY

  • Battery operation，10 Hours
  • Long life Li-Ion battery pack (14.8V, typical 10200mAh,151Wh)
  • Battery charge time: 3.5 hours on/off
  • AC Adapter: AC 100V-240V 50/60Hz, DC 19V4.73A

POWER MANAGEMENT

  • Suspend/Resume Function, Hibernation, Standby, ACPI BIOS

SECURITY FEATURES

  • Password Security: Supervisor, User, Hard Disk Lock
  • Kensington cable lock slot

WARRANTY

  • 3-year limited warranty, parts and labor

DIMENSIONS & WEIGHT

  • 350mm(L) x 300mm(W) x 60mm(H)
  • 5.8Kg(Full Magnesium Alloy Case,4.7Kg)

ENVIRONMENTAL

  • Operating Temperature: -20ºC to 55ºC(optional: -40ºC to 60ºC)
  • Storage Temperature: -40ºC to 65ºC
  • Humidity: 5% to 95% RH, Non-Condensing

INTEGRATED OPTIONS

  • 256GB solid state drives (SSD)

Please consult your reseller or CZC New Rugged representative before purchasing.

  • Tested by national independent third party lab following MIL-STD-810G Method 516.6 Procedure IV for transit droptest and IEC 60529 Sections 13.4, 13.6.2, 14.2.5 and 14.3 for IP65.
  • 1GB = 1,000,000,000 bytes.
  • Battery performance features such as charge time and life span can vary according to the conditions under whichthe computer and battery are used. Battery operation and recharge times will vary based on many factors, includingscreen brightness, applications, features, power management, battery conditioning and other customer preferences.Battery testing results from MobileMark 2007 running Windows 7 Professional.
  • Accessories and Integrated Options may vary depending on your notebook configuration.
  • Computers configured with a 32-bit operating system can address up to 3GB of system memory. Only computers configured with a 64-bit operating system can address 4 GB or more of system memory.
  • Specification subject to change without notice.
